5 665₴
Battery Pack 6S3P (21700) 15000mAh 21,6V/180A
Battery assembliesThe DISCOUNT applies only to the Armed Forces of Ukraine, Territorial Defense, volunteers and charitable organizations!
Full capacity – 15 Ah
Nominal voltage: 21.6V
Operating voltage range: 16 – 25.2V

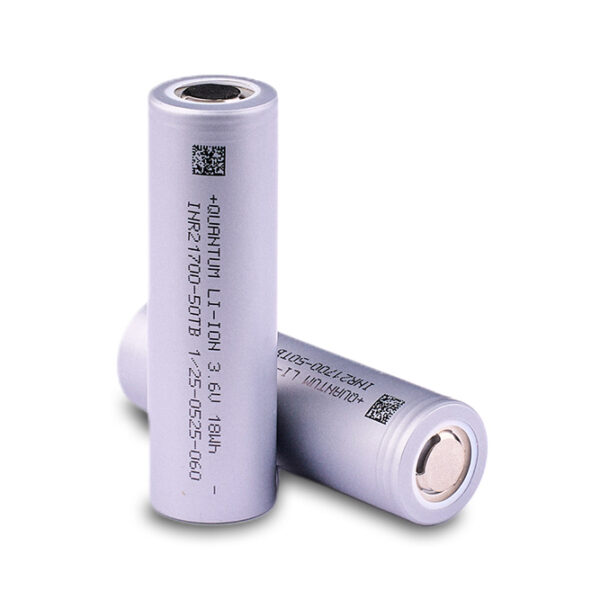

Cell type: Quantum INR21700-50TB 5000mAh 3.6V 60A
Cell connection type: 6S3P
Power connector: XT60
Balance connector: JST XH 2.54mm 7 pin
Maximum charge current: 18A
Maximum discharge current: 180A
Dimensions: 140 x 75 x 75 mm
Weight: 1280 g
9 in stock
Description
Battery Pack 6S3P (21700) 15000mAh 21,6V/180A
The 6S3P 21700 battery pack is a highly efficient and powerful power source for various electronic devices.
This is a lithium-ion battery consisting of three parallel rows (3P) of 21700 format cells.
Key features:
Purpose: battery pack for powering FPV drones
6S3P capacity: 15 Ah
The 6S3P configuration means that the battery consists of six cells connected in series, with three such groups connected in parallel. This makes it possible to achieve high voltage and capacity.
Battery type: Uses lithium-ion technology, which provides high energy capacity and long runtime between charges.
Panasonic brand: this battery is known for its quality and reliable power supply.
Voltage and capacity: The typical voltage for multipurpose (6S) lithium-ion batteries is approximately 21.6 volts, the capacity is 15,000 mAh, and the maximum discharge current is 180A.
The pack has an XT60H power connector and a JST XH 2.54mm balance connector.
Power wire type – 12 AWG, balance wire – 22 AWG.
The 7cm wire is the balance wire, the 12cm one is the power wire.
Additional information
| Weight | 1.28 kg |
|---|---|
| Dimensions | 14 × 7.5 × 7.5 cm |
| Connection type | 5 – 10S |
| Connector | XT60 |
| Weight | 1 – 3 кг |
| Voltage | 10 – 30 V |
| Capacity/Energy | 10 – 30 Ah |
